QL Series

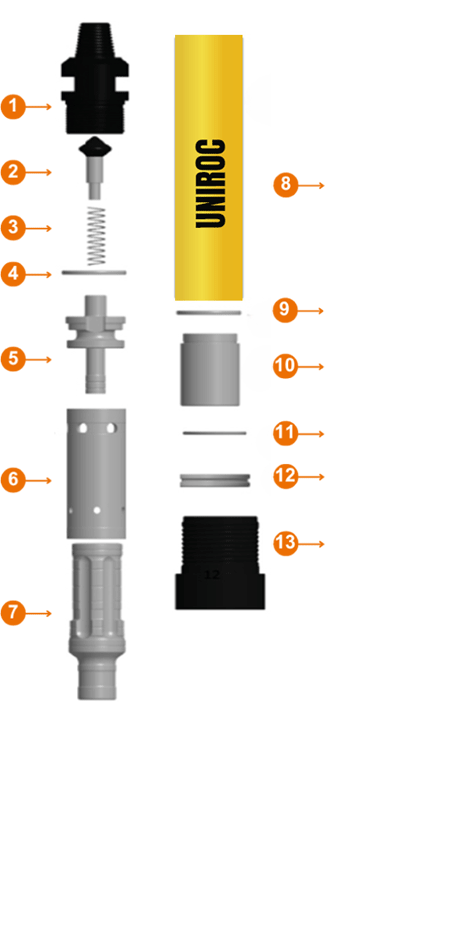

| S.No | Parts Description |
|---|---|
| 1 | Top Sub |
| 2 | Check Valve Body |
| 3 | Spring |
| 4 | Buffer Ring |
| 5 | Air Distributer |
| 6 | Liner |
| 7 | Piston |
| 8 | Hammer Case |
| 9 | Circlip |
| 10 | Guide Bush |
| 11 | B.R Ring O-Ring |
| 12 | B.R Ring |
| 13 | Drive Sub |
| Weight (Kg) | Hammer Length (MM) | Outside Diameter (mm) | ||
| QL60 | - | 111 | 1090 | 148 |
| PSI | 200 | 250 | 300 | 350 |
| CFM | 550 | 730 | 900 | 1070 |
| Weight (Kg) | Hammer Length (MM) | Outside Diameter (mm) | ||
| QL80 | - | 190 | 1354 | 178 |
| PSI | 200 | 250 | 300 | 350 |
| CFM | 550 | 730 | 900 | 1070 |
