Our Products
BR Series

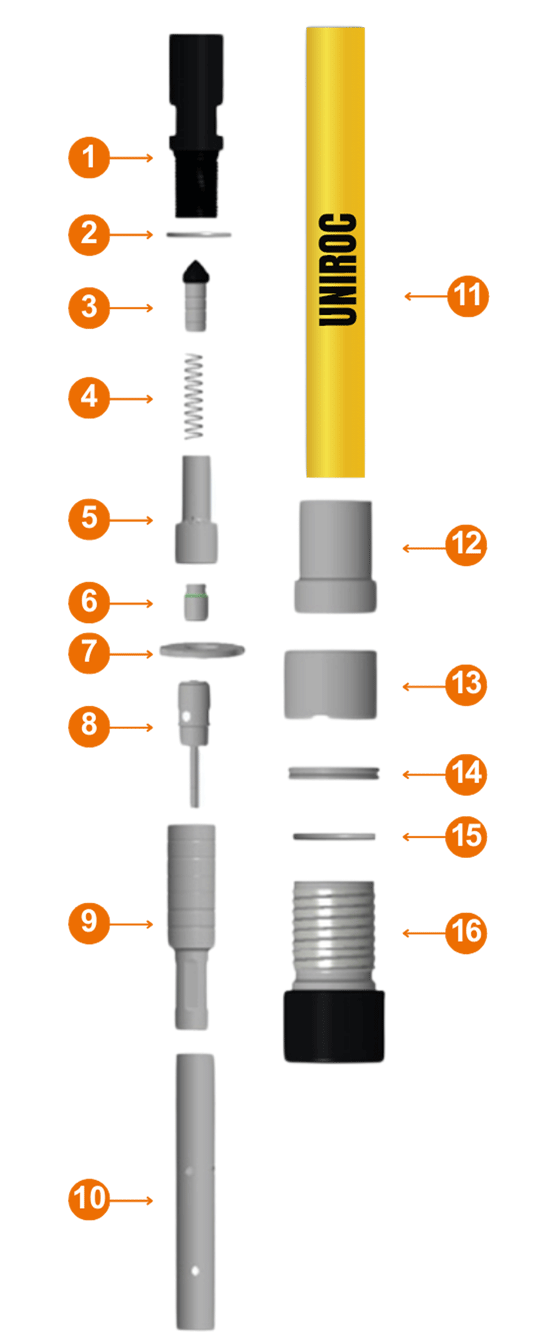

| S.No |
Parts Description |
| 1 |
Top Sub |
| 2 |
Top Sub O Rings |
| 3 |
Check Valve |
| 4 |
Check Valve Spring |
| 5 |
Top Valve |
| 6 |
Valve Centraliser |
| 7 |
Flapper Valve |
| 8 |
Bottom Valve |
| 9 |
Piston |
| 10 |
Liner |
| 11 |
Hammer Case |
| 12 |
Guide Bush |
| 13 |
Spilt Bush |
| 14 |
Bit Retainer Rings |
| 15 |
Bit Retainer O-Ring |
| 16 |
Drive Sub |
|
|
Weight (Kg) |
Hammer Length (MM) |
Outside Diameter (mm) |
| BR1 |
|
10.3 |
606 |
55 |
| PSI |
100 |
150 |
200 |
250 |
| CFM |
17.79 |
32.69 |
50.32 |
70.33 |
|
|
Weight (Kg) |
Length (MM) |
Diameter (mm) |
| BR2 |
|
12.68 |
809 |
62 |
| PSI |
100 |
150 |
200 |
250 |
| CFM |
26.62 |
48.96 |
75.38 |
105.35 |
|
|
Weight (Kg) |
Hammer Length (MM) |
Outside Diameter (mm) |
| BR2 |
|
21.4 |
764 |
77 |
| PSI |
100 |
150 |
200 |
250 |
| CFM |
38.83 |
70.42 |
108.41 |
151.51 |
